Serpentine Industrial Assembly Fixture (SF-60120)

These Fixtures are used for building Large Stacked Core Heat Exchangers such as Locomotive, or Gen-Set Type Cores. Serpentine fins or Square Wave Fins can be used with Core Depths up to 150mm and Tube Lengths up to 3m long.

Featuring Hydraulic Compression, Tilting Table and Roller Bed, these fixtures are a must have for large core production.

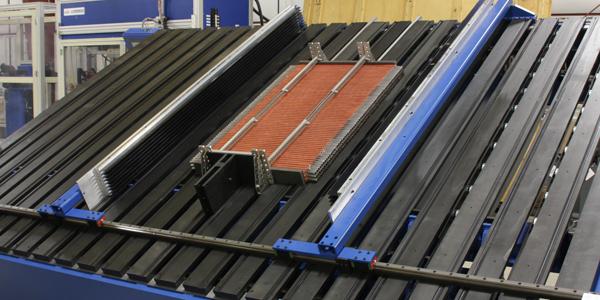

Large Assembly Fixtures

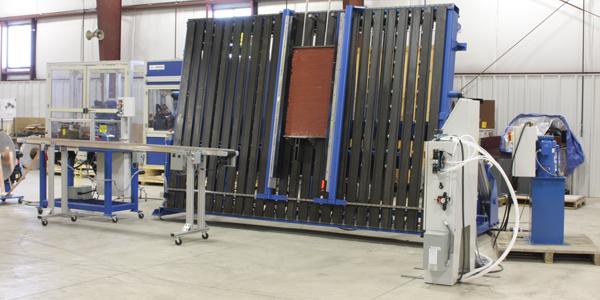

Vertical Position

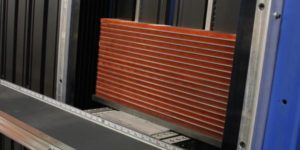

Core in Nest

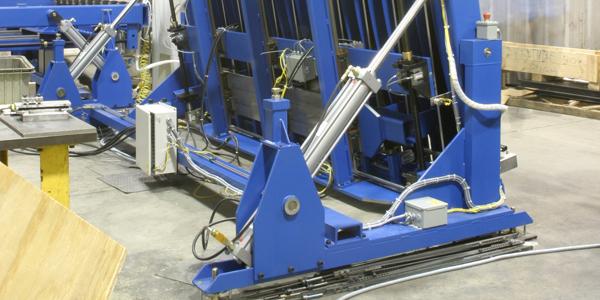

Tilt Table

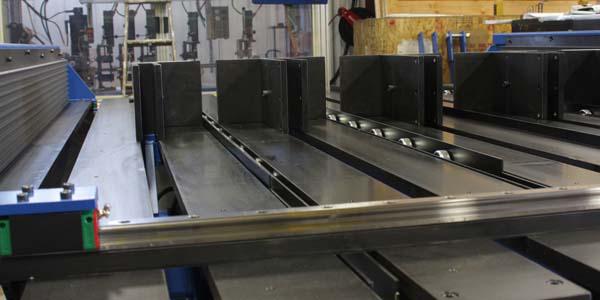

Roller Bed
Large Assembly Fixtures Vertical Position Core in Nest Tilt Table Roller Bed

Serpentine Industrial Assembly Fixture (SF-60120)

Machine Specification

  • Machine Size – 3.35m L x 1.83m W x 2.44m H
  • Machine Weight – 925 kg (Based on fixture size)
  • Machine Power – 400/460 VAC, 3 PH, 50/60 HZ, 15 AMP
  • Air Supply – 100 psi Moisture Free Air
  • Operator Interface – Allen Bradley Panelview 550
  • Machine Color – Voss Blue
  • Warranty – 1 year

Machine Capacity

  • Max Fin Length – 60″ (1524mm)
  • Max Tube Length – 120″ (3048mm)
  • Core Size – 60″ x 120″ (1524mm x 3048mm)
  • Max Core Thickness – Tube Number Dependent

Machine Options

  • Other Available Sizes – SF-63120
  • Contact Voss Mfg for custom size
  • Paint Color
