Core Squaring Fixture (CSF-63120)

The Core Squaring Fixture is used to square large cores after baking to ensure the tube ends are flush with one another and square to the core edge.  These are mostly used in mechanical bonded type cores where the tube end position is important, but they can also be with normal industrial type radiator cores.  Once the core comes out of the baking oven, it’s loaded into this fixture, secured along the edge, and a ram from the tube end pushes the core against a fixed stop.  This evens up the tube ends, and squares the warm core, then the core is left to cool in the fixture.

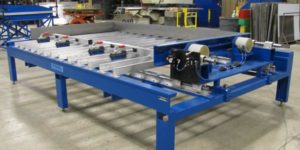

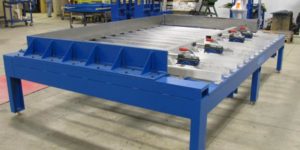

Core Squaring Table

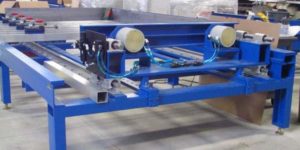

Pneumatic Compression
Core Squaring Table

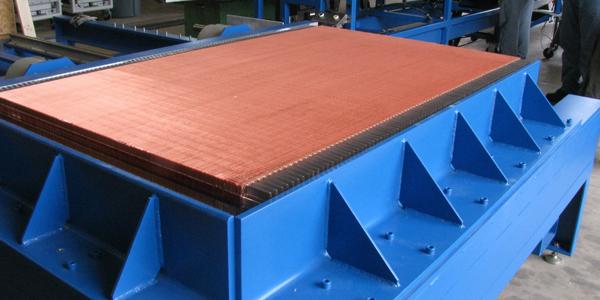

Core Squaring Table

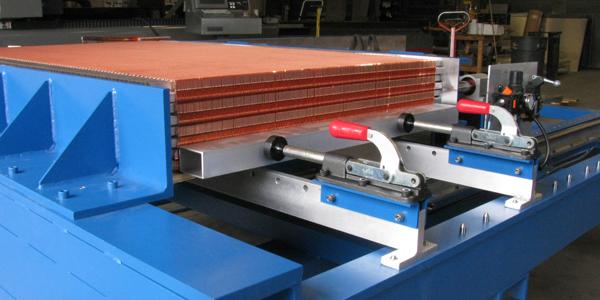

Core Compress
Core Squaring Table Pneumatic Compression Core Squaring Table Core Squaring Table Core Compress

Core Squaring Table (CSF-63120)

Specification

  • Machine Size – 13ft [3.9m] W x 8ft [2.40m] L x 3.2ft [1.00m] H
  • Machine Weight – 2500 lb. [1150 kg]

Capacity

  • Max Tube Length – 120″ [3050mm]
  • Max Fin Length – 63″ [1600mm]
  • Max Core Thickness – 9″ [225mm]
  • Core Size – 63″ x 120″ [1600mm x 3050mm]
