Industrial Roller Flat Fin Machine (FR-100)

Voss designed the Industrial Roller Flat Fin machine to quickly produce flat fins at a low-cost.  This machine is ideal when high precision fins, like those produced by our stamping process, are not required.

The roll has a set of fixed punches that pierce the tube slots at rates up to 30 meters per minute.  The electronic controlled cutoff cuts the fins with the same accuracy as other roller fin machines.  The fin produced by our Industrial Roller Flat Fin machine is limited to simple flat fins without enhancements.  This machine is ideal where fast production of cost-effective fin is required.

Voss Flat Fin

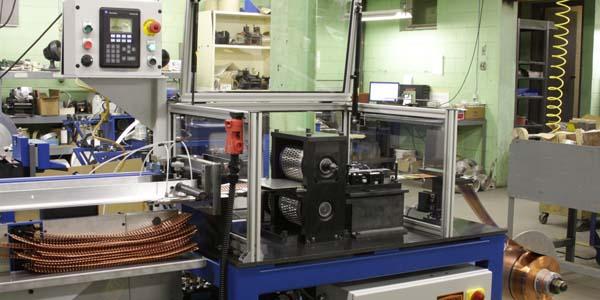

FR-100 Roller Flat Fin Machine

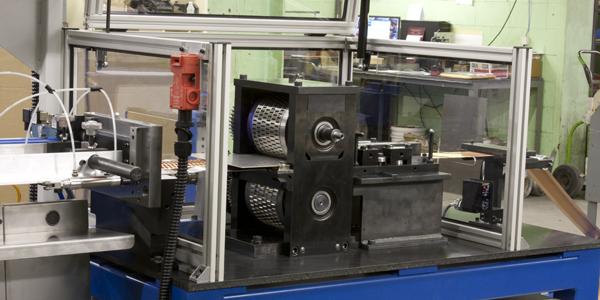

FR-100 Roller Flat Fin Machine
Precision Cutoff
Roller Hemming Station

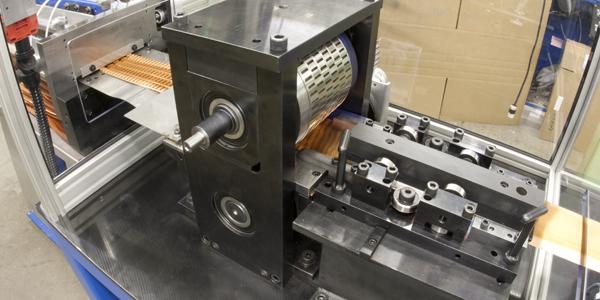

Form Roll
FR-100 Roller Flat Fin Machine FR-100 Roller Flat Fin Machine Precision Cutoff Roller Hemming Station Form Roll

Industrial Roller Flat Fin Machine (FR-100)

Specification

  • Machine Size – 3.00m L x 0.65m W x 2.00m H
  • Machine Weight – 600 kg
  • Machine Speed – 30m per minute

Capacity

  • Max Fin Width – 150mm
  • Max Fin Thickness – 1.5mm
